Introduction

This API allows for the integration of HOP into merchant web shops.

A HOP payment consists of 3 steps:

  1. Authorisation
  2. Requesting payment
  3. Processing payment status

Merchants can independently query for the status of a payment.

In order to use the API you will need:

These will have been provided to you by Hakrinbank.

Authorization

Authorisation request

<?php
$curl = curl_init();

curl_setopt_array($curl, array(
  CURLOPT_URL => "https://hop.hakrinbank.com/gateway/service/WebshopAuth/00000000/aaaaa00000/1691709/13.45",
  CURLOPT_RETURNTRANSFER => true,
  CURLOPT_ENCODING => "",
  CURLOPT_MAXREDIRS => 10,
  CURLOPT_TIMEOUT => 30,
  CURLOPT_HTTP_VERSION => CURL_HTTP_VERSION_1_1,
  CURLOPT_CUSTOMREQUEST => "GET"
));

$response = curl_exec($curl);

curl_close($curl);

HttpClient client = new HttpClient();
System.Net.ServicePointManager.SecurityProtocol |= SecurityProtocolType.Tls11 | SecurityProtocolType.Tls12;
client.BaseAddress = new Uri("https://hop.hakrinbank.com/gateway/service/WebshopAuth/00000000/aaaaa00000/1691709/13.45");
client.Timeout = new System.TimeSpan(1, 0, 0);
client.DefaultRequestHeaders.Accept.Clear();
client.DefaultRequestHeaders.Accept.Add(
    new MediaTypeWithQualityHeaderValue("application/json"));

HttpResponseMessage response = client.GetAsync(String.Empty).Result;

Authorisation response

{
    "Code":"0",
    "Resp":"1d3496824b626ed7cf712512ec42e3c3"
}

In order to request a payment with HOP, you need to include an authorisation token.

To request an authorisation token you will need the Merchant Id and Password provided to your shop by Hakrinbank.

This token needs to be requested for each payment you wish to make and will expire in a fixed amount of time or when used in payment.

HTTP Request

GET https://hop.hakrinbank.com/gateway/service/WebshopAuth/<merchant_id>/<password>/<invoice#>/<amount>

URL Parameters

Parameter Description
merchant_id The Merchant Id provided to you by Hakrinbank
password The Password provided to you by Hakrinbank
invoice# The invoice number which you intend to use for the transaction
amount The payment amount to be made with the transaction

HTTP Response

The request will return a JSON response containing a status code and the token.

Code Resp Description
0 token The token to be used in the transaction
1 SERVICE_OFFLINE The service is offline
2 ACCOUNT_VIOLATION Service to merchant suspended due to account violations
3 INPUT_NOT_ALLOWED “Dirty” input
4 ACCOUNT_INACTIVE Merchant account is inactive or does not exist
5 PASSWORD_INCORRECT The password provided is incorrect

Payment

Once you have your authorisation token, you can request payment with HOP. The user should be redirected from your webshop to HOP or HOP should be opened in a new window to complete the payment.

Request payment

<?php

header('Location: https://hop.hakrinbank.com/gateway/service/PaymentController.php?TokenID=1d3496824b626ed7cf712512ec42e3c3&Email=user@mailer.com&Amount=13.45&Desc=Some_Item&Inv=1691709&returnURL=http%3A%2F%2Fdemo.web.com%2Fpayments%0A%2Fservice');

    Response.Redirect("https://hop.hakrinbank.com/gateway/service/PaymentController.php?TokenID=1d3496824b626ed7cf712512ec42e3c3&Email=user@mailer.com&Amount=13.45&Desc=Some_Item&Inv=1691709&returnURL=http%3A%2F%2Fdemo.web.com%2Fpayments%0A%2Fservice")

HTTP Request

GET https://hop.hakrinbank.com/gateway/service/PaymentController.php

Parameters

Parameter Description
TokenID The token you received during authorisation
Email (optional) User email account - currently not used
Amount Purchase amount.
Amount should be in decimals; no commas or currency symbols allowed.
e.g: SRD 4,75 => 4.75
Desc Purchase description
Inv Purchase invoice number
returnURL Callback URL for status updates (pending / cancel / paid).
Must be url_encoded.

This will bring customers to HOP where they will see the details of the transaction you wish to make. From here they will be able to authorise or cancel this transaction.

Process Payment

After the user has interacted with HOP regarding the transaction, HOP will do the following:

HOP will use the returnURL for both actions and append parameters to this URL.

In the following examples a returnURL with value http://your-domain-name/path/to/service/ is assumed

Notification

If the user authorizes the payment and the bank processes it successfully, HOP will call:

http://your-domain-name/path/to/service/4354BbDf05D74f8a879108870e156e22/1691709/paid

If the user authorizes the payment but the transaction fails, HOP will call:

http://your-domain-name/path/to/service/4354BbDf05D74f8a879108870e156e22/1691709/failed

If the user cancels the payment or the request has expired, HOP will call:

http://your-domain-name/path/to/service/4354BbDf05D74f8a879108870e156e22/1691709/cancel

HOP will append the <merchant_key>, <invoice#> and <status> to the returnURL and execute a call to the resulting callback URL.

The Merchant Key should be used by the merchant to verify the authenticity of the notification.

Merchants can update the status of the order in their database by executing custom code at the callback URL.

If the user authorizes the payment and the bank processes it successfully, HOP will call:

http://your-domain-name/path/to/service/<merchant_key>/<invoice#>/paid

Failed

If the user authorizes the payment but the transaction fails, HOP will call:

http://your-domain-name/path/to/service/<merchant_key>/<invoice#>/failed

Cancel

If the user cancels the payment or the request has expired, HOP will call:

http://your-domain-name/path/to/service/<merchant_key>/<invoice#>/cancel

URL parameters

Parameter Description Values
merchant_key The key for the merchant requesting this transaction The Merchant Key provided to you by Hakrinbank
invoice# The invoice number for this transaction The invoice number supplied by the merchant when requesting the payment
status The status of the payment request pending = Payment submitted and awaiting for user action
paid = Payment processed successfully by bank
failed = Payment denied by bank
cancel = Payment canceled by user / expired

Redirect

If the user authorizes the payment and the bank processes it successfully, HOP will redirect to:

http://your-domain-name/path/to/service/0/<invoice#>/success/APPROVED

If the user authorizes the payment but the transaction fails, HOP will redirect to:

http://your-domain-name/path/to/service/0/<invoice#>/failed/INVALID_PIN

or

http://your-domain-name/path/to/service/0/<invoice#>/failed/NOT_ENOUGH_FUNDS

If the user cancels the payment, HOP will redirect to:

http://your-domain-name/path/to/service/0/<invoice#>/cancel/USER_CANCEL

After the merchant has been notified, HOP will redirect the users back to the shop.

HOP will append the <merchant_key>, <invoice#>, status and payment_gateway_message to the returnURL and redirect the user.

The merchant can use this page to update the user on the status of their transaction.

If the user authorizes the payment and the bank processes it successfully, HOP will redirect to:

http://your-domain-name/path/to/service/<merchant_key>/<invoice#>/paid/<payment_gateway_message>

Failed

If the user authorizes the payment but the transaction fails, HOP will redirect to:

http://your-domain-name/path/to/service/<merchant_key>/<invoice#>/failed/<payment_gateway_message>

Cancel

If the user cancels the payment or the request has expired, HOP will redirect to:

http://your-domain-name/path/to/service/<merchant_key>/<invoice#>/cancel/<payment_gateway_message>

Parameter Description Values
merchant_key The key for the merchant requesting this transaction Defaults to 0
invoice# The invoice number for this transaction The invoice number supplied by the merchant when requesting the payment
status The status of the payment request pending = Payment submitted and awaiting user action
paid = Payment processed successfully by bank
failed = Payment denied by bank
cancel = Payment canceled by user / expired
payment_gateway_message A string providing contextual information for the status APPROVED
INVALID_PIN
NOT_ENOUGH_FUNDS
USER_CANCEL

Query Payment Status

<?php

$curl = curl_init();

curl_setopt_array($curl, array(
  CURLOPT_URL => "https://hop.hakrinbank.com/gateway/service/PaymentStatus/00000000/aaaaa00000/1691709/200318",
  CURLOPT_RETURNTRANSFER => true,
  CURLOPT_ENCODING => "",
  CURLOPT_MAXREDIRS => 10,
  CURLOPT_TIMEOUT => 30,
  CURLOPT_HTTP_VERSION => CURL_HTTP_VERSION_1_1,
  CURLOPT_CUSTOMREQUEST => "GET",
));

$response = curl_exec($curl);

curl_close($curl);

HttpClient client = new HttpClient();
System.Net.ServicePointManager.SecurityProtocol |= SecurityProtocolType.Tls11 | SecurityProtocolType.Tls12;
client.BaseAddress = new Uri("https://hop.hakrinbank.com/gateway/service/PaymentStatus/00005407/5d2aFa7c62/1691709/200318");
client.DefaultRequestHeaders.Accept.Clear();
client.DefaultRequestHeaders.Accept.Add(
    new MediaTypeWithQualityHeaderValue("application/json"));

HttpResponseMessage response = client.GetAsync(String.Empty).Result;

Payment status response for single payment attempt on invoice number

{
    "Code":"0",
    "Txn_Number":"123456",
    "Status":"APPROVED",
    "RespCode":"00",
    "Email":"user@mailer.com",
    "Amount":"6.00",
    "Time":"18-09-2017 22:54:02"
}

Payment status response when multiple payment attempts have been made on the same invoice number

{
    "records":
    [
        {
            "Txn_Number": "000001",
            "Status": "INVALID PIN",
            "RespCode": "51",
            "Email": "user@mailer.com",
            "Amount": "13.83",
            "Time": "07-04-2018 11:23:31"
        },
        {
            "Txn_Number": "662233",
            "Status": "APPROVED",
            "RespCode": "00",
            "Email": "user@mailer.com",
            "Amount": "13.83",
            "Time": "07-04-2018 11:24:58"
        }
    ]
}

In addition to waiting on a notification from HOP to update their orders, merchants can also independently query for the status of a transaction.

HTTP Request

GET https://hop.hakrinbank.com/gateway/service/PaymentStatus/<merchant_id>/<password>/<invoice#>/<date>

URL Parameters

Parameter Description
merchant_id The Merchant Id provided to you by Hakrinbank
password The Password provided to you by Hakrinbank
invoice# The invoice number assigned by the merchant to the transaction
date The date the transaction was made formatted as DDMMYY.
if not supplied, defaults to current date.

HTTP Response properties

Property Description Values
Code Query result 0 = Success (Got Payment Status)
1 = Service Offline
2 = Account Violation
3 = Input Not Allowed
4 = Account does not exist
5 = Password Incorrect
Txn_Number Authorization number from bank system
Status Text description of bank response
RespCode Response code from bank system 00 = success
Any other value indicates a failure
Email User account
Time Date and time of transaction
Amount Transaction amount

If a payment was attempted multiple times with the same invoice number, the response will contain an array of the status of all attempts.

Plugins

HOP has plugins available for WordPress WooCommerce and Magento 2.0+. If your webshop is built on any of these systems, we recommend integrating HOP this way.

WordPress WooCommerce

Download the HOP WooCommerce plugin.

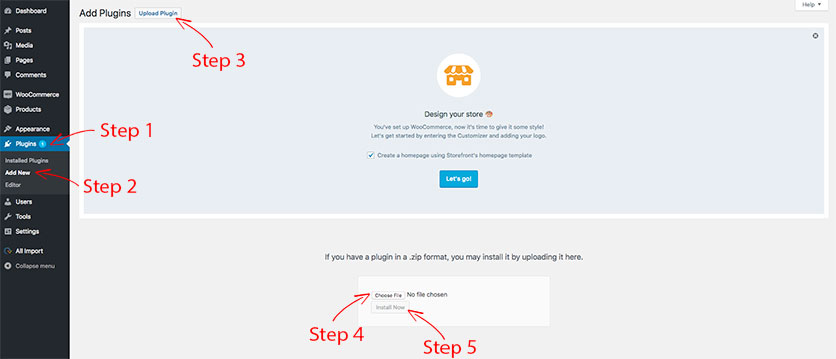

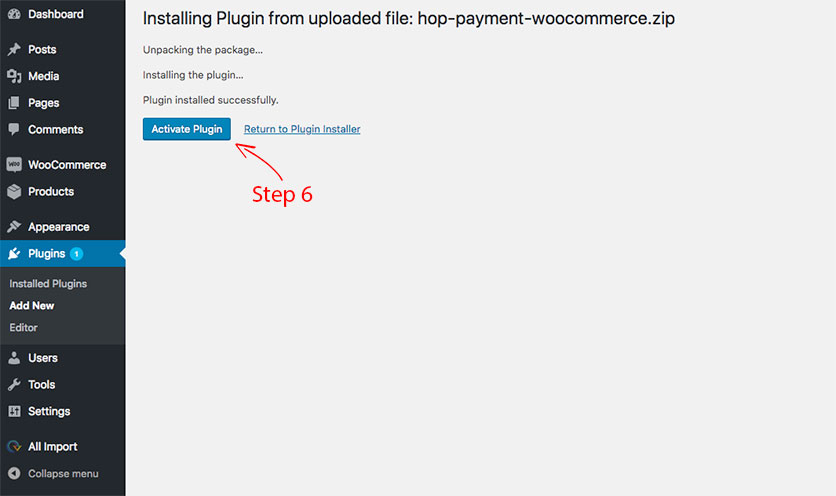

Install plugin

After installation:

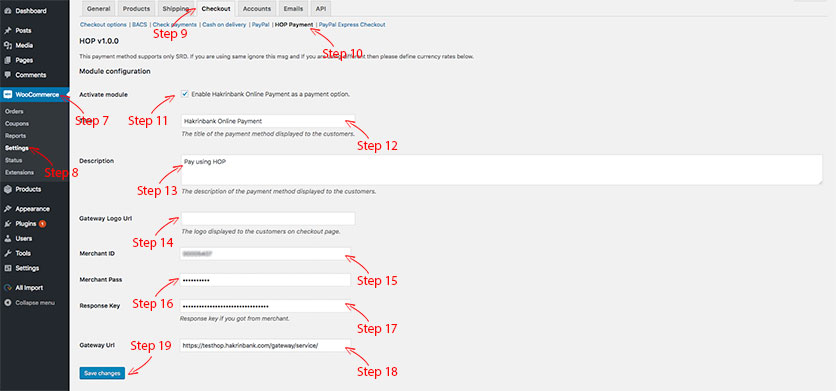

Configure plugin

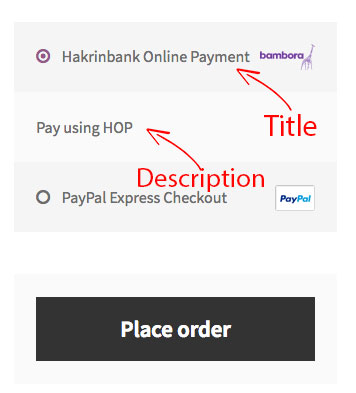

The plugin should now be visible in the shop as a checkout option.

Magento 2

Download the HOP Magento 2 plugin.

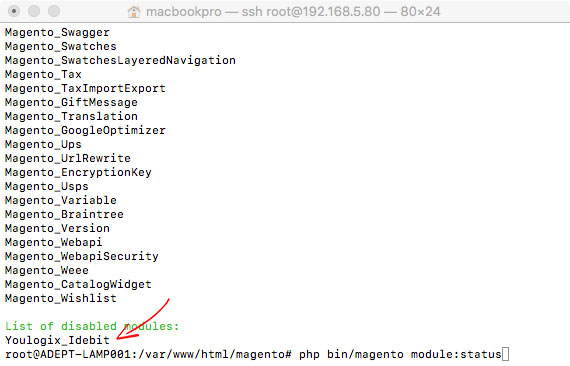

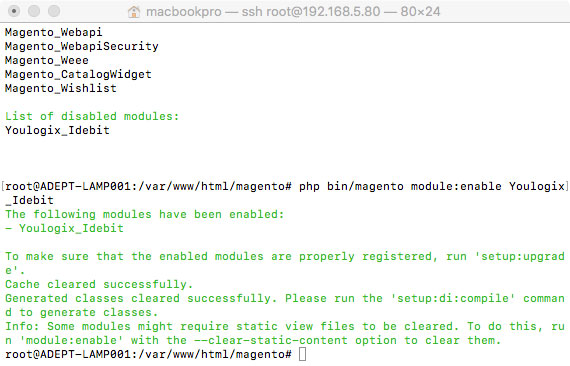

You should see that the following module is disabled: Youlogix_Idebit

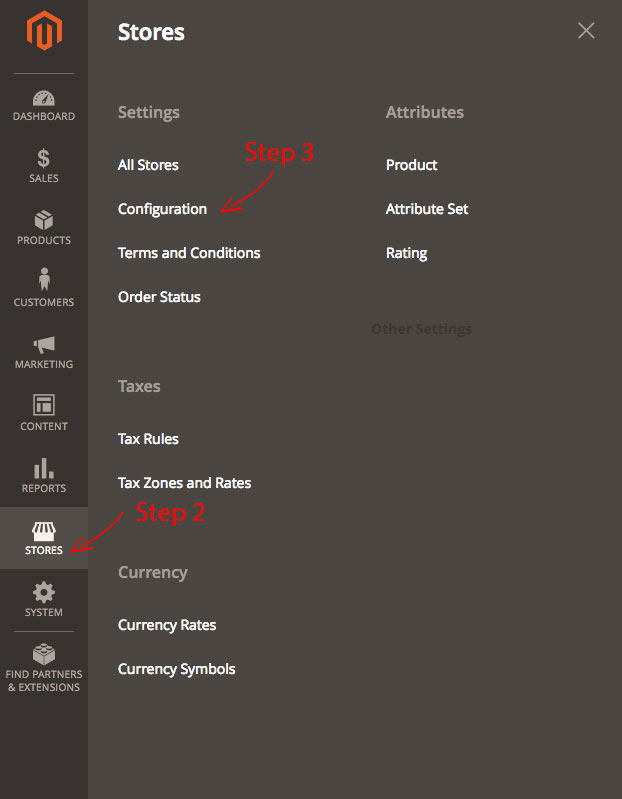

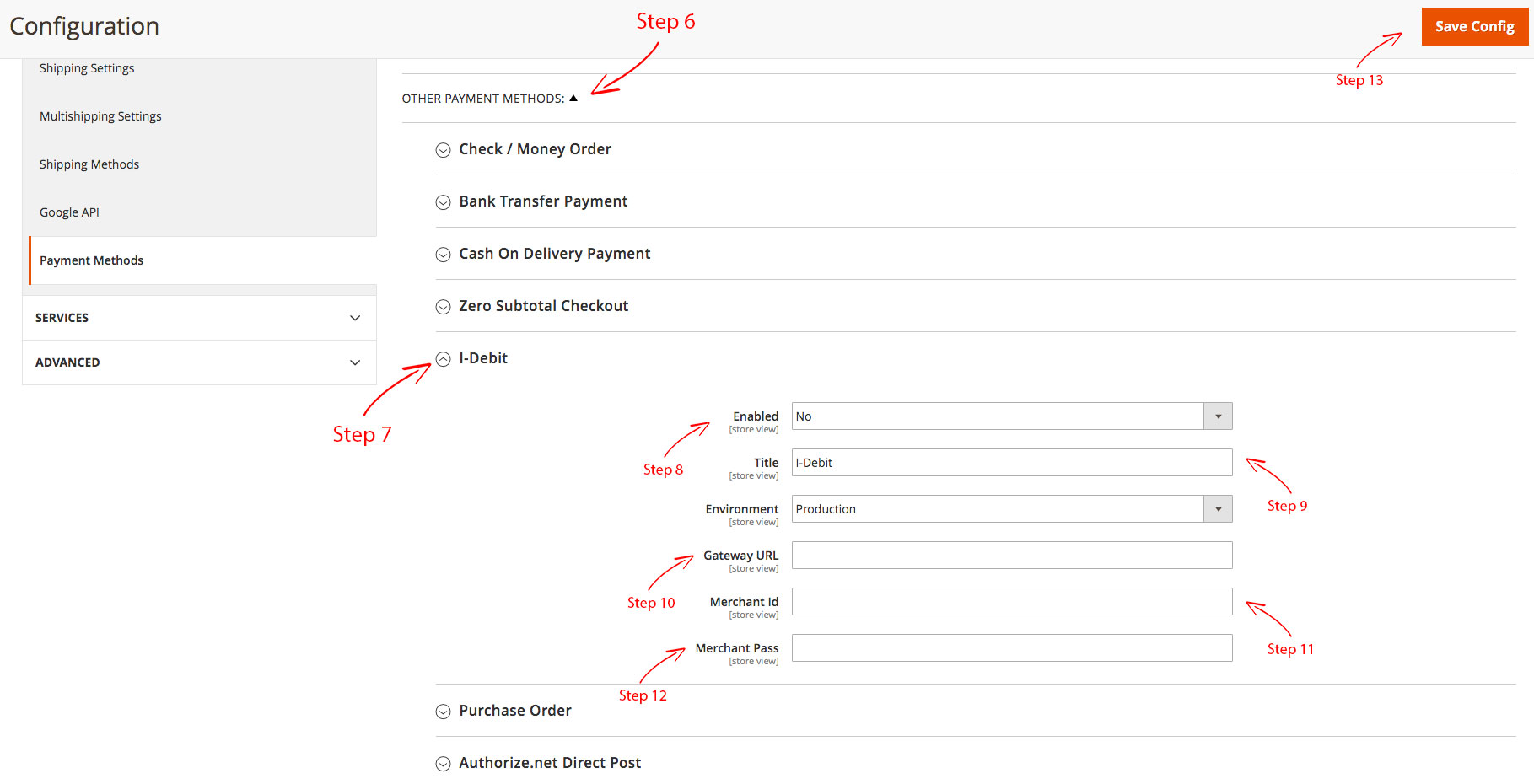

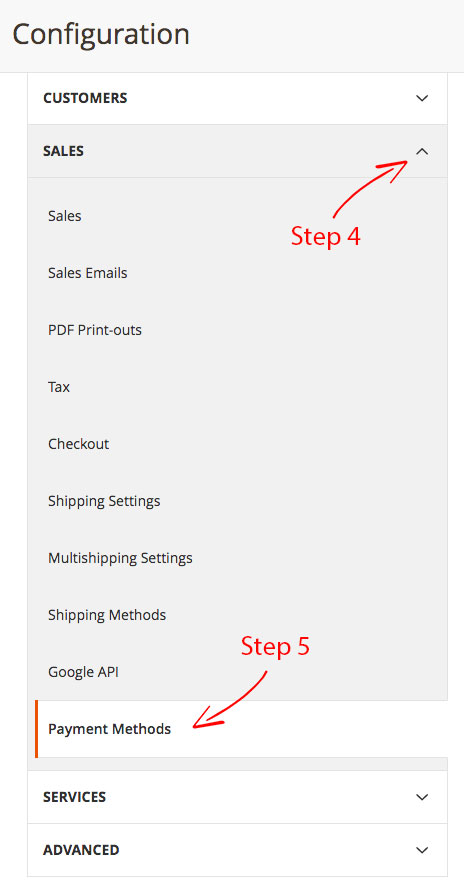

Configuring the module

Your module has been configured

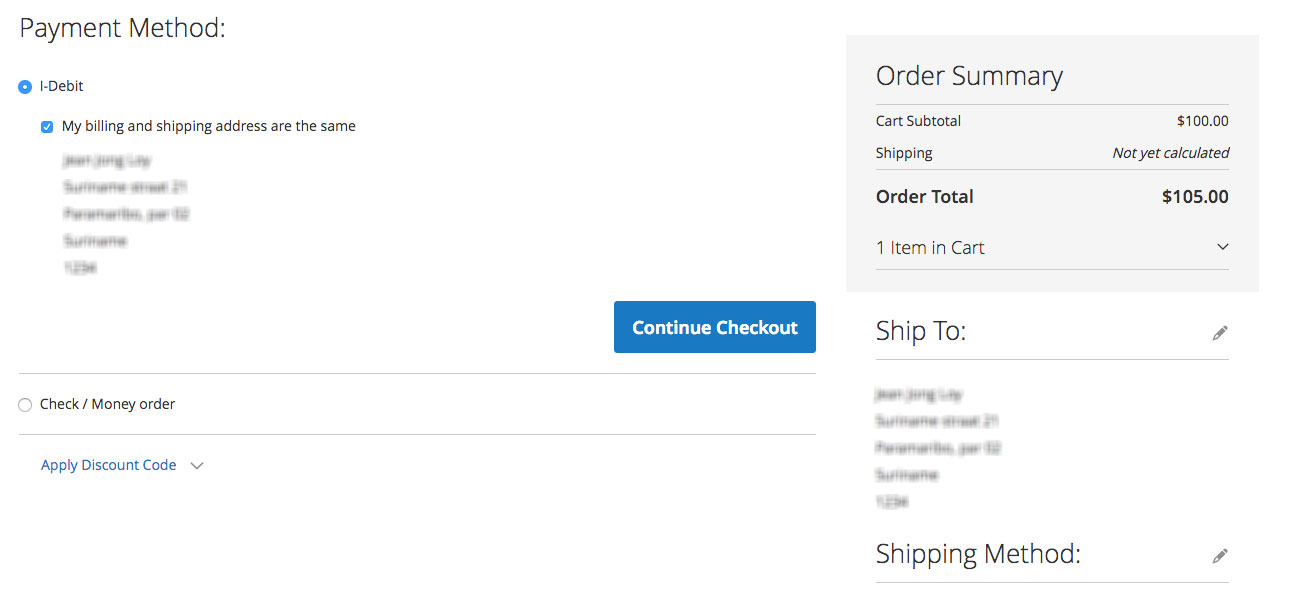

At the checkout process I-Debit (HOP Payment) should be visible

Magento 1.9

Download the HOP Magento 1.9 plugin.

Log into magento 1 backend

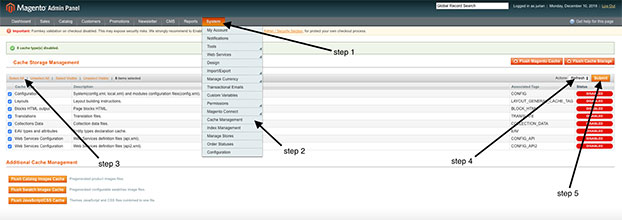

Disable cache

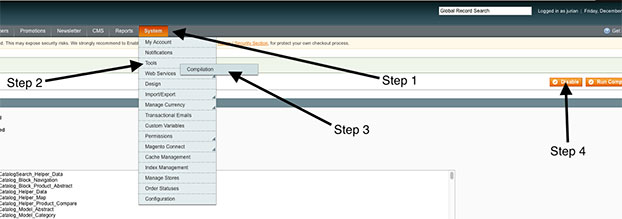

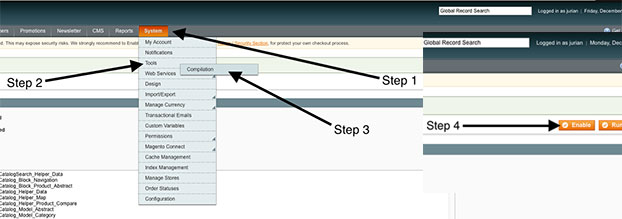

Disable compiler

Copy plugin files to Magento root

Enable compiler

Enable Cache management

Configure plugin
